It is common for ASP.NET developers to adopt lax practices in their management of JavaScript. I believe this is because there is not a lot of reliable information online for how to properly deal with JavaScript in an ASP.NET application. The purpose of this article is to present an optimal technique to manage your JavaScript in your ASP.NET applications. The following issues will be addressed:
Prerequisites
Make sure you have Visual Studio 2010. Some concepts presented in this article may not work with the Express editions.
Overview
Most of the above problems are caused by placing JavaScript or references to JavaScript files directly in the ASPX page. The solution to almost all of the above problems is to use ASP.NET's built-in capability to embed JavaScript files into a DLL and then reference those files dynamically. This article will present those capabilities, as well as some techniques to take full advantage of them. A tutorial format will be used to explain how each step is done.
Getting Started

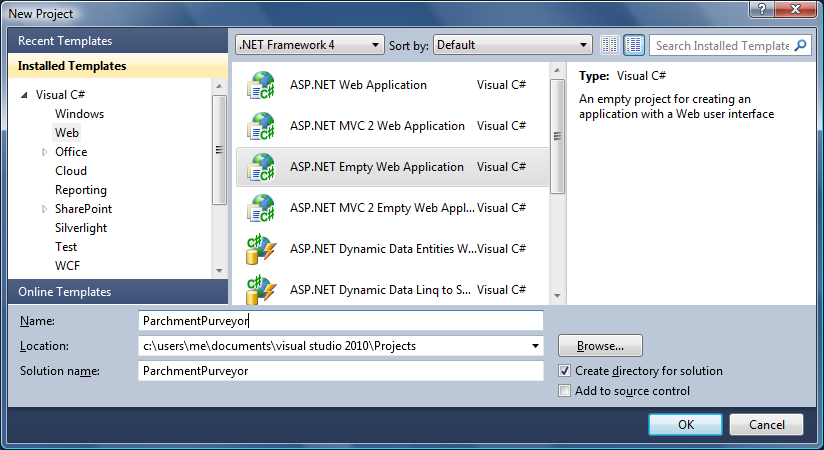

First things first. Start up Visual Studio 2010 and create a new empty web application called ParchmentPurveyor (we are making a website for somebody who wants to sell fancy paper):
Now, add a new web form called "Default.aspx", and add some simple HTML to it. It should look something like this:
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs"
Inherits="ParchmentPurveyor.Default" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title>Parchment Purveyor</title>
</head>
<body>
<form id="form1" runat="server">
<h1>Parchment Purveyor</h1>
<p>Paper for printers, painting, publication,
paper planes, and plenty of other plebeian projects!</p>
</form>
</body>
</html>
Adding JavaScript
Now that we have a fully functional website that is sure to get the attention of a plethora of people, we can focus on the JavaScript coding. Rather than add a JavaScript file to our main project, we will do things a little differently. We are going to create a new project to hold all of our JavaScript files. Start by adding a new class library project, calledJavaScriptLibrary, to the solution:
When you added that project, a file called "Class1.cs" was added for you. We don't need that, so delete it. Add a folder to JavaScriptLibrary called "JavaScript". You will also add two JavaScript files to that folder. Call them "ShowMessage.js" and "GreetUser.js". Next, create a new class called JavaScriptHelper (do not place this in the "JavaScript" folder... it will go at the root level of the JavaScriptLibrary project). By now, your solution structure should look something like the following:
A couple of empty JavaScript files aren't going to do us any good, so let's put something in them. For starters, "ShowMessage.js" will hold a function called ShowMessage():
function ShowMessage(msg) {
alert("Message From Website: " + msg);
}
The "GreetUser.js" file will have its own function, GreetUser():
function GreetUser() {
ShowMessage("Greetings and Salutations!");
}
Notice that GreetUser() is dependent upon ShowMessage(). We will be handling that later.
Embedding the JavaScript Files
Rather than have to deploy our JavaScript files to our website, we'd like them to be embedded into the DLL. That way, if the DLL is deployed to the website, all JavaScript files are also automatically deployed. Doing this is very simple; all we need to do is go to the properties for each JavaScript file and change the "build action" from "content" to "embedded resource":
While that will ensure the files get embedded into the DLL, you must still make them available to the web client. Before you do that, the JavaScriptLibrary project needs to reference System.Web:
Once you have added that reference, edit "JavaScriptHelper.cs" by adding the following using statement and assembly attributes:
using System.Web.UI;
[assembly: WebResource("JavaScriptLibrary.JavaScript.ShowMessage.js",
"application/x-javascript")]
[assembly: WebResource("JavaScriptLibrary.JavaScript.GreetUser.js",
"application/x-javascript")]
That will enable your embedded JavaScript files to be accessible from the client computer.
Including the Embedded JavaScript Files
Now that you have embedded the JavaScript files and made them accessible via the client computer, you must actually reference them from the pages they are used on. To facilitate this, we will fill in our JavaScriptHelper class:
using System;
using System.Web.UI;
[assembly: WebResource("JavaScriptLibrary.JavaScript.ShowMessage.js",
"application/x-javascript")]
[assembly: WebResource("JavaScriptLibrary.JavaScript.GreetUser.js",
"application/x-javascript")]
namespace JavaScriptLibrary
{
public class JavaScriptHelper
{
#region Constants
private const string NAME_SHOW_MESSAGE =
"JavaScriptLibrary.JavaScript.ShowMessage.js";
private const string NAME_GREET_USER =
"JavaScriptLibrary.JavaScript.GreetUser.js";
#endregion
#region Public Methods
public static void Include_ShowMessage(ClientScriptManager manager)
{
IncludeJavaScript(manager, NAME_SHOW_MESSAGE);
}
public static void Include_GreetUser(ClientScriptManager manager)
{
Include_ShowMessage(manager);
IncludeJavaScript(manager, NAME_GREET_USER);
}
#endregion
#region Private Methods
private static void IncludeJavaScript
(ClientScriptManager manager, string resourceName)
{
var type = typeof(JavaScriptLibrary.JavaScriptHelper);
manager.RegisterClientScriptResource(type, resourceName);
}
#endregion
}
}
The IncludeJavaScript() function is what does all the magic. It ensures a script tag gets inserted for an embedded JavaScript file, which it does by calling RegisterClientScriptResource(). IncludeJavaScript() is called by Include_GreetUser(). Notice also that Include_GreetUser() calls Include_ShowMessage(), which means it handles dependencies for the user of the class. Any page that includes the GreetUser() function will also include the ShowMessage() function.
Now that we have that class available for our use, let's put it to use on the "Default.aspx" page. You can start by making sure ParchmentPurveyor has a reference to JavaScriptLibrary:
Next, we'll need to modify the code behind to include the JavaScript on the page.
using System;
using System.Web.UI;
namespace ParchmentPurveyor
{
public partial class Default : System.Web.UI.Page
{
protected override void OnPreRender(EventArgs e)
{
base.OnPreRender(e);
JavaScriptLibrary.JavaScriptHelper.Include_GreetUser(Page.ClientScript);
}
}
}
Finally, we just have one thing left to do -- call the GreetUser() function from the page. To do this, all we need to do is add the following JavaScript to the page (I chose to add it in the head tag):
<head runat="server">
<title>Parchment Purveyor</title>
<script type="text/javascript">
window.onload = function () { GreetUser(); };
</script>
</head>
That's it! You are done! Well, mostly. There are a few more niggling cases to handle. Before we get to those, however, let's look at the fruits of our labor:
Here is what your HTML might look like when you view the source of the page (I shortened and removed some values):
<html xmlns="http://www.w3.org/1999/xhtml">
<head><title>
Parchment Purveyor
</title>
<script type="text/javascript">
window.onload = function () { GreetUser(); };
</script>
</head>
<body>
<form method="post" action="Default.aspx" id="form1">
<div class="aspNetHidden">
<input type="hidden" name="__VIEWSTATE" id="__VIEWSTATE" value="..." />
</div>
<script src="/WebResource.axd?d=fslk3GLsk3Slek&t=1234" type="text/javascript">
</script>
<script src="/WebResource.axd?d=fglk3kSl3LS5&t=5678" type="text/javascript"></script>
<h1>Parchment Purveyor</h1>
<p>Paper for printers, painting, publication,
paper planes, and plenty of other plebeian projects!</p>
</form>
</body>
</html>
Notice there are two
script tags that reference something called "
WebResource.axd". That is basically a service which serves embedded information to the client. You can read more about "
WebResource.axd"
here. The important thing to note is that the first
script tag is serving up the
ShowMessage() function and the second
script tag is serving up the
GreetUser() function. Both of those
script tags were included in the page when you called the
Include_GreetUser() function in your JavaScript library.
Late Includes
Sometimes, the above technique does not include the JavaScript file. For example, I work with a third-party tool that prevents me from calling .NET code before the render stage. When you call the include functions above during the render stage, the script tags do not get inserted into the page. This is because the beginning of the page has already been rendered to HTML. My solution to this problem is to create an alternate form of the function that inserts thescript tag near the bottom of the HTML. I call this a "late include". We can support this technique with a few changes to JavaScriptHelper:
using System;
using System.Web;
using System.Web.UI;
[assembly: WebResource("JavaScriptLibrary.JavaScript.ShowMessage.js",
"application/x-javascript")]
[assembly: WebResource("JavaScriptLibrary.JavaScript.GreetUser.js",
"application/x-javascript")]
namespace JavaScriptLibrary
{
public class JavaScriptHelper
{
#region Constants
private const string TEMPLATE_SCRIPT =
"<script type=\"text/javascript\" src=\"{0}\">
</script>\r\n";
private const string NAME_SHOW_MESSAGE =
"JavaScriptLibrary.JavaScript.ShowMessage.js";
private const string NAME_GREET_USER =
"JavaScriptLibrary.JavaScript.GreetUser.js";
#endregion
#region Public Methods
public static void Include_ShowMessage
(ClientScriptManager manager, bool late = false)
{
IncludeJavaScript(manager, NAME_SHOW_MESSAGE, late);
}
public static void Include_GreetUser
(ClientScriptManager manager, bool late = false)
{
Include_ShowMessage(manager, late);
IncludeJavaScript(manager, NAME_GREET_USER, late);
}
#endregion
#region Private Methods
private static void IncludeJavaScript(ClientScriptManager manager,
string resourceName, bool late)
{
var type = typeof(JavaScriptLibrary.JavaScriptHelper);
if (!manager.IsStartupScriptRegistered(type, resourceName))
{
if (late)
{
var url = manager.GetWebResourceUrl(type, resourceName);
var scriptBlock = string.Format
(TEMPLATE_SCRIPT, HttpUtility.HtmlEncode(url));
manager.RegisterStartupScript(type, resourceName, scriptBlock);
}
else
{
manager.RegisterClientScriptResource(type, resourceName);
manager.RegisterStartupScript(type, resourceName, string.Empty);
}
}
}
#endregion
}
}
I modified each method to accept an additional parameter, late. This defaults to false, so the methods can still be called the same way they used to be. A value of false will preserve the old behavior. A value of true will cause thescript blocks to be included near the end of the HTML. Note also that in the case that late is false, I still callRegisterStartupScript(), but I pass it an empty string (so that function call does not actually insert anything into the HTML). This is done so IsStartupScriptRegistered() will return the correct value. That way, the JavaScript will never be included more than once, even if one of the functions is called with late set to false and then again with late set to true. If you want to see this in action, comment out the OnPreRender() in the code behind and modify the body of the page to look like this:
<body>
<form id="form1" runat="server">
<h1>Parchment Purveyor</h1>
<p>Paper for printers, painting, publication,
paper planes, and plenty of other plebeian projects!</p>
<% // This gets called during the render stage.
JavaScriptLibrary.JavaScriptHelper.Include_GreetUser
(Page.ClientScript, true); %>
</form>
</body>
That will call the version of the function that includes the script tags near the bottom of the HTML, which you can observe by viewing the source of the page when you run the application.
External JavaScript
So far, I've only demonstrated how to include embedded JavaScript. However, it is sometimes desirable to link to an external JavaScript file. To facilitate this, we need to add a new helper function in JavaScriptHelper:
private static void IncludeExternalJavaScript
(Page page, string key, string httpUrl, string httpsUrl, bool late)
{
var manager = page.ClientScript;
var type = typeof(JavaScriptLibrary.JavaScriptHelper);
bool isStartupRegistered = manager.IsStartupScriptRegistered(type, key);
bool isScriptRegistered = manager.IsClientScriptIncludeRegistered(type, key);
if (!(isStartupRegistered || isScriptRegistered))
{
string url;
if (page.Request.Url.Scheme.ToLower() == "http")
{
url = httpUrl;
}
else
{
url = httpsUrl;
}
if (late)
{
manager.RegisterStartupScript(type, key,
string.Format(TEMPLATE_SCRIPT, HttpUtility.HtmlEncode(url)));
}
else
{
manager.RegisterClientScriptInclude(type, key, url);
}
}
}
As an example of an external file you might include, I'll use the jQuery file hosted by Microsoft's CDN. Just like the other JavaScript files, you will create a function in JavaScriptHelper to include jQuery on the page:
Collapse | Copy Code
private const string NAME_JQUERY = "jQuery";
private const string URL_JQUERY = "http://ajax.aspnetcdn.com/ajax/jQuery/jquery-1.5.1.js";
private const string URL_JQUERY_HTTPS =
"https://ajax.aspnetcdn.com/ajax/jQuery/jquery-1.5.1.js";
public static void Include_jQuery(Page page, bool late = false)
{
if (page == null)
{
page = (Page)HttpContext.Current.Handler;
}
IncludeExternalJavaScript(page, NAME_JQUERY, URL_JQUERY, URL_JQUERY_HTTPS, late);
}
Finally, you can include jQuery on your page by calling your function from the OnPreRender() function in your page:
protected override void OnPreRender(EventArgs e)
{
base.OnPreRender(e);
JavaScriptLibrary.JavaScriptHelper.Include_jQuery(Page);
JavaScriptLibrary.JavaScriptHelper.Include_GreetUser(Page.ClientScript);
}
If you run your application and view the source of the page, you'll see that jQuery gets included:
<script src=http://ajax.aspnetcdn.com/ajax/jQuery/jquery-1.5.1.js
type="text/javascript"></script>
Adding New JavaScript Files
Once you have everything setup, there are only a few steps you need to complete when adding new JavaScript files:
- Add the ".js" file to the "JavaScript" folder. Skip this step for external JavaScript files.
- Set the "build action" to "embedded resource". Skip this step for external JavaScript files.
- Add the assembly attribute to indicate the JavaScript file is a web resource. Skip this step for external JavaScript files.
- Create a function in
JavaScriptHelper to include your JavaScript file.
- Call the function you just created from a page, control, or masterpage.
Excluding JavaScript Files
While you should have everything you need to include JavaScript, you must sometimes exclude JavaScript. For example, when working with third-party control libraries that may have exotic ways of including JavaScript, the only way to prevent a certain JavaScript file from being included twice may be to have your code avoid including it (and let the third-party library include the JavaScript for you). This can be accomplished with one more helper function. Before we get to that, however, let's demonstrate a scenario where this technique will come in handy. Say your third-party control includes jQuery. This user control, "InlineGreeting.ascx", will serve as just such a control:
<%@ Control Language="C#" %>
<%-- This is a bad way to do things, but we can luckily overcome this obstacle. --%>
<script type="text/javascript"
src="http://ajax.aspnetcdn.com/ajax/jQuery/jquery-1.5.1.js">
</script>
<script type="text/javascript">
$(document).ready(function() {
$("#lblGreeting").text("Hello");
});
</script>
<p>
<label id="lblGreeting"></label>
</p>
Now suppose we have another control, "Hello.ascx", that uses that same jQuery file:
<%@ Control Language="C#" AutoEventWireup="true"
CodeBehind="Hello.ascx.cs" Inherits="ParchmentPurveyor.Hello" %>
<script type="text/javascript">
$(document).ready(GreetUser);
</script>
The code behind for "Hello.ascx" will include jQuery, as well as our JavaScript to greet the user:
protected override void OnPreRender(EventArgs e)
{
base.OnPreRender(e);
JavaScriptLibrary.JavaScriptHelper.Include_GreetUser(Page.ClientScript);
JavaScriptLibrary.JavaScriptHelper.Include_jQuery(Page);
}
Now, if we were to include both of our user controls on the "Default.aspx" page, jQuery would get included twice (once by the third-party control and once by our JavaScript library). In order to avoid that, we will add two functions,ExcludeJavaScript() and Exclude_jQuery(), to our JavaScriptHelper class:
private const string NAME_DUMMY_FILE = "JavaScriptLibrary.JavaScript.DummyFile.js";
public static void Exclude_jQuery(ClientScriptManager manager)
{
ExcludeJavaScript(manager, NAME_JQUERY);
}
private static void ExcludeJavaScript(ClientScriptManager manager, string key)
{
var type = typeof(JavaScriptLibrary.JavaScriptHelper);
var url = manager.GetWebResourceUrl(type, NAME_DUMMY_FILE);
manager.RegisterStartupScript(type, key, string.Empty);
manager.RegisterClientScriptInclude(type, key, url);
}
Notice we have defined a new constant,
NAME_DUMMY_FILE. The above functions assume we have added an empty JavaScript file to our "
JavaScript" folder and embedded it according to the
above instructions. This empty dummy JavaScript file will be included in place of any JavaScript files we want to be excluded. All we need to do in order to prevent our library from including jQuery is to call
Exclude_jQuery() from the
Page_Load() of "
Default.aspx":
protected void Page_Load(object sender, EventArgs e)
{
JavaScriptLibrary.JavaScriptHelper.Exclude_jQuery(Page.ClientScript);
}
Now all we need to do is modify "Default.aspx" to include "InlineHello.ascx" and "Hello.ascx" and we are done:
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs"
Inherits="ParchmentPurveyor.Default" %>
<%@ Register Src="~/Hello.ascx" TagPrefix="greet" TagName="Hello" %>
<%@ Register Src="~/InlineGreeting.ascx" TagPrefix="greet" TagName="InlineHello" %>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title>Parchment Purveyor</title>
<script type="text/javascript">
</script>
</head>
<body>
<form id="form1" runat="server">
<h1>Parchment Purveyor</h1>
<p>Paper for printers, painting, publication,
paper planes, and plenty of other plebeian projects!</p>
<% JavaScriptLibrary.JavaScriptHelper.Include_GreetUser
(Page.ClientScript, true); %>
<%-- An inline greeting (pretend this comes from a
third-party control library. --%>
<greet:InlineHello runat="server" />
<%-- Our jQuery greeting. --%>
<greet:Hello runat="server" />
</form>
</body>
</html>
Now that we have made sure to call Exclude_jQuery() before Include_jQuery(), we have prevented our JavaScript library from including "jQuery.js". That way, jQuery is only included once by our mock third-party control. Most of the time, this situation should be avoidable. However, for when it is not avoidable, this technique should tidy up our HTML output nicely.
A Note For VB.NET Users
When making the VB.NET version of the code, most everything was the same as the C# version, aside from syntax differences. However, there was one important gotcha you should keep in mind. In the C# version of the code, you'll note that all the paths to the JavaScript files start with "JavaScriptLibrary.JavaScript.". However, in the VB.NET version of the code, all the paths start with only "JavaScriptLibrary." (i.e., VB.NET seems to ignore the "JavaScript" folder all of the JavaScript files are in). That requires VB.NET users to make just a few changes:
<Assembly: WebResource("JavaScriptLibrary.ShowMessage.js", "application/x-javascript")>
<Assembly: WebResource("JavaScriptLibrary.GreetUser.js", "application/x-javascript")>
<Assembly: WebResource("JavaScriptLibrary.DummyFile.js", "application/x-javascript")>
Private Const NAME_SHOW_MESSAGE As String = "JavaScriptLibrary.ShowMessage.js"
Private Const NAME_GREET_USER As String = "JavaScriptLibrary.GreetUser.js"
Private Const NAME_DUMMY_FILE As String = "JavaScriptLibrary.DummyFile.js"
Aside from that, I found no other differences when making this code work in VB.NET. If you would like to try it yourself, the VB.NET version of the code can be downloaded using the link at the top of the article.
What Did You Gain?
After all this work with the same apparent HTML output, you might be asking yourself, "what did I really gain by adding all this extra code?" Well, here are a few solutions presented by this approach:
- Inline JS - You have reduced page bloat by avoiding putting your JavaScript library inline in the page.
- Deploying JS - You do not need to include the ".js" files when you deploy your web application. Deploying the DLL will be enough.
- Bad References - Even if you change the path of your application, you will not have to worry about changing your JavaScript paths.
- Dependencies - Dependencies are managed automatically. If you included "GreetUser.js", "ShowMessage.js" will automatically be included.
- Unused JS - No JavaScript is included on the page unless you call the function to include it. This will avoid having unused JavaScript on the page (potentially speeding up load times for users).
- HTTP / HTTPS - The code outputs
script tags that do not include the protocol, so the protocol should be the same as the current page (i.e., HTTP or HTTPS).
- Refactoring - If you want to use a different version of a script, you only need to modify it in one place. This could be useful, for example, if you decide to switch to a CDN version of jQuery rather than hosting it yourself. It could also be useful for upgrading to a new version of jQuery.
- Redundancy - No matter how many times you call one of the include functions, the
script tags will only be included on the page once.
